Hub Workflow OCR Flow

You can configure the OCR processing via Hub's workflow engine. Therefore configure a new flow via Settings→ Flow → Add new flow (if you don't see OCR file here the app isn't installed properly or you forgot to activate it).

If you want a newly uploaded file to be processed via OCR or if you want to process a file which was updated, use the When-conditions File created or File updated or both.

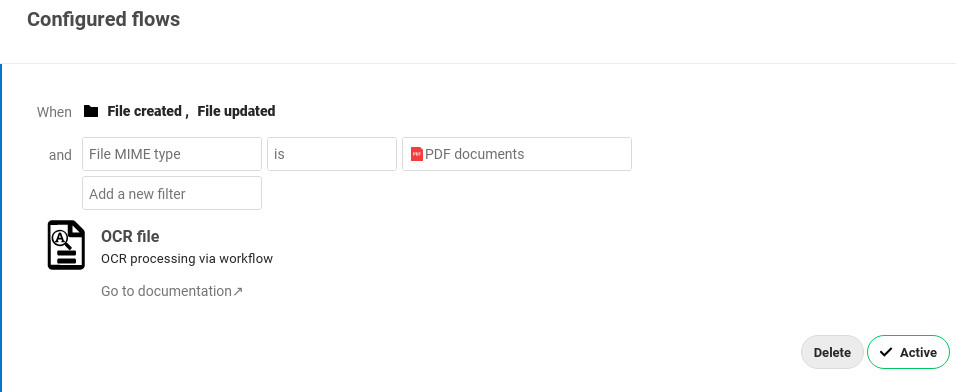

A typical setup for processing incoming PDF-files and adding a text-layer to them might look like this:

⚠️ Please ensure to use the File MIME type → is → PDF documents operator, otherwise you might not be able to save the workflow like discussed here.

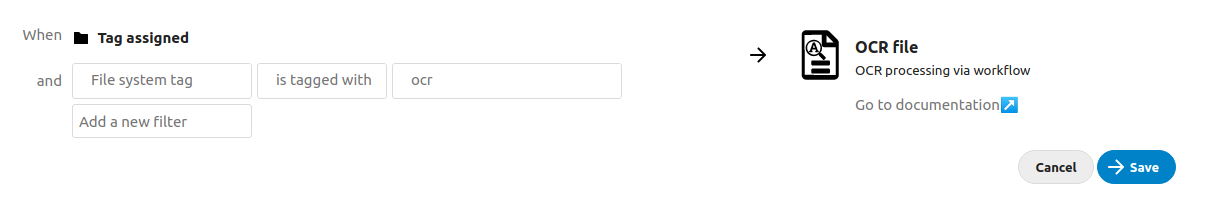

If you have existing files which you want to process after they have been created, or if you want to filter manually which files are processed, you can use the Tag assigned event to trigger the OCR process if a user adds a specific tag to a file. Such a setup might look like this:

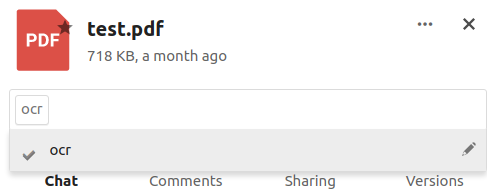

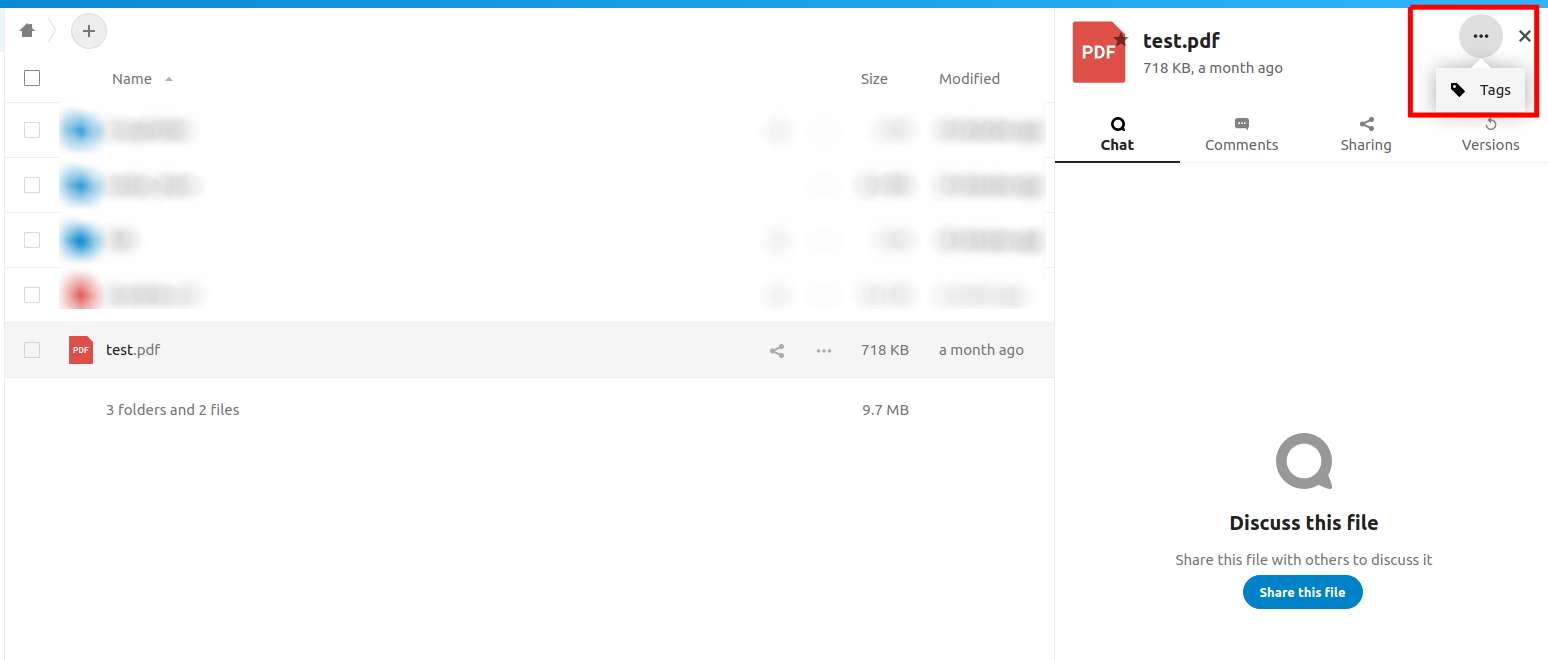

After that you should be able to add a file to the OCR processing queue by assigning the configured tag to a file:

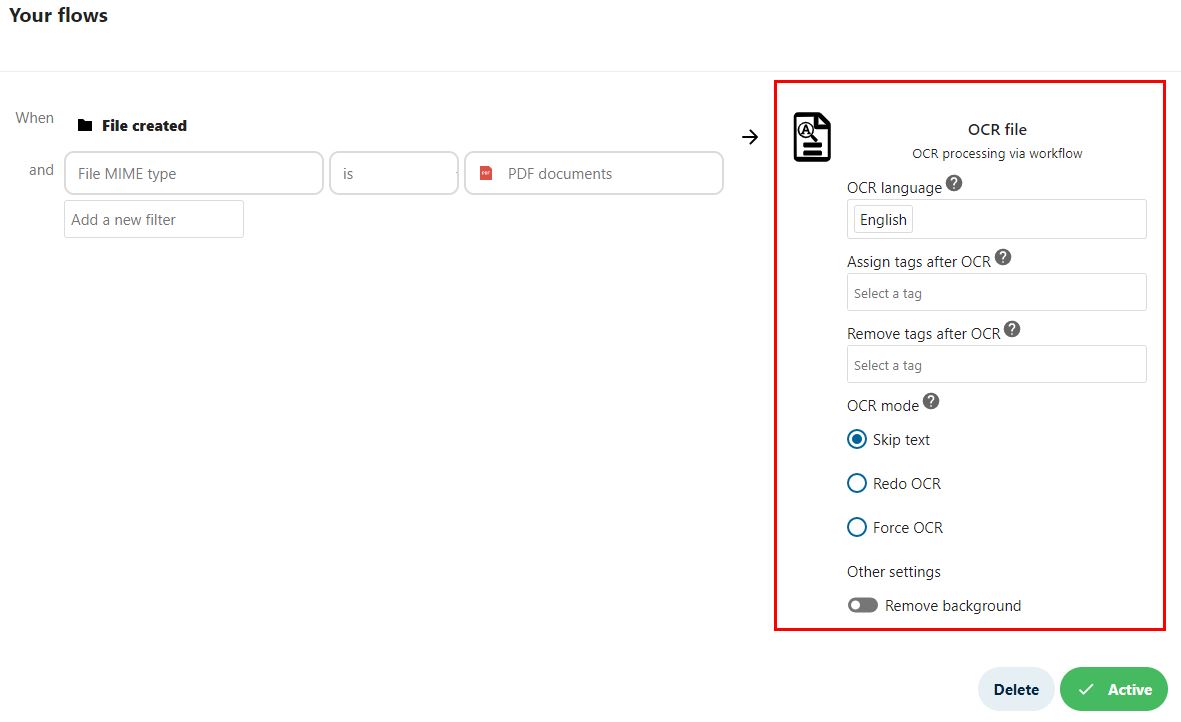

Anyone who can create new workflows (admin or regular user) can configure settings for the OCR processing for a specific workflow. These settings are only applied to the specific workflow and do not affect other workflows.

Currently the following settings are available per workflow:

* For ocrmypdf the parameter --remove-background is incompatible with --redo-ocr.

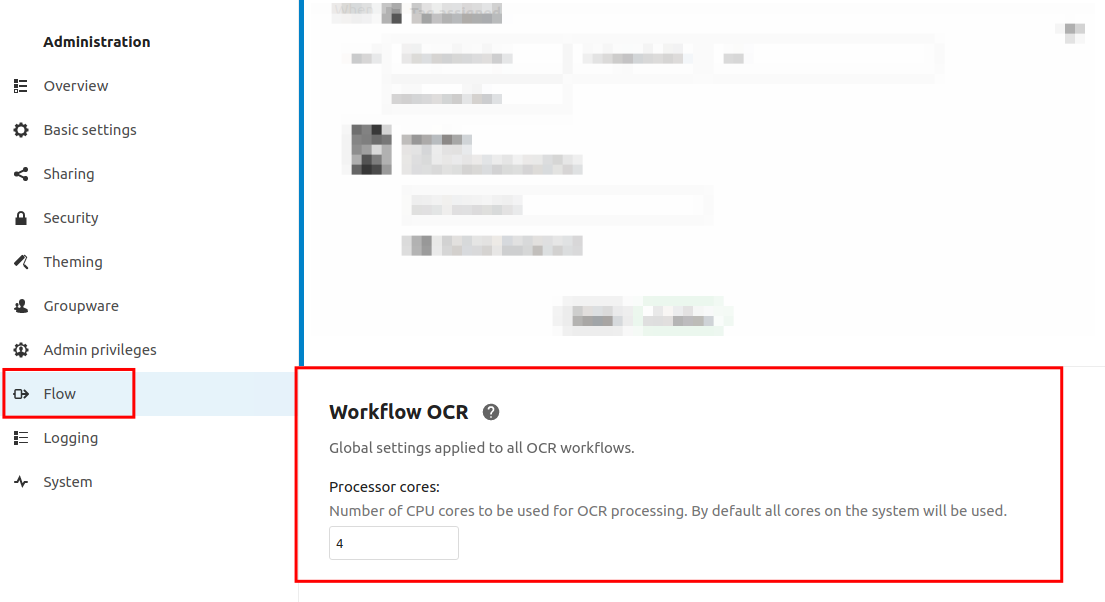

As a Hub administrator you're able to configure global settings which apply to all configured OCR-workflows on the current system. Go to Settings → Flow and scroll down to Workflow OCR:

Currently the following settings can be applied globally:

To test if your file gets processed properly you can do the following steps:

1. Upload a new file which meets the criteria you've recently defined in the workflow creation.
2. Go to your servers console and change into the Hub installation directory (e.g. cd /var/www/html/nextcloud).
3. Execute the cronjob file manually e.g. by typing sudo -u www-data php cron.php (this is the command you usually setup to be executed by linux crontab).

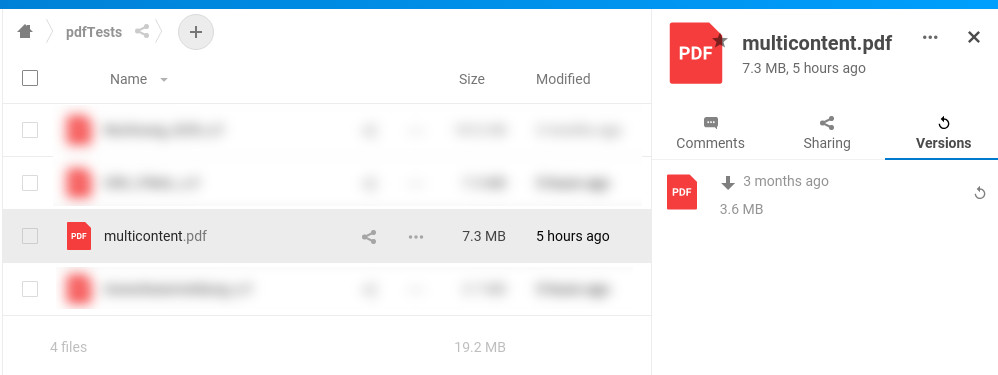

4. If everything went fine you should see that there was a new version of your file created. If you uploaded a PDF file you should now be able to select text in it if it contained at least one image with scanned text.

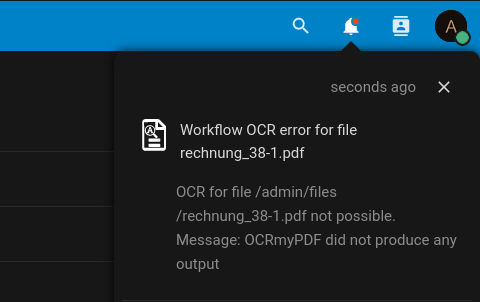

The Workflow OCR app supports sending notifications to the user in case anything went wrong during the asynchronous OCR processing. To enable this feature, you have to install and enable the Notifications app in your Hub instance.

For processing PDF files, the external command line tool OCRmyPDF is used. The tool is always invoked with the --skip-text parameter so that it will skip pages which already contain text. Please note that with that parameter set, it's currently not possible to analize pages with mixed content (see #113 for furhter information).

For processing single images (currently jpg and png are supported), ocrmypdf converts the image to a PDF. The converted PDF file will then be OCR processed and saved as a new file with the original filename and the extension .pdf(for example myImage.jpg will be saved to myImage.jpg.pdf). The original image fill will remain untouched.

Since this app does its main work asynchronously, controlled by the NC cron, the troubleshooting gets slightly more complicated. That's why we suggest to follow this guide if you're facing any issues:

1. Create your OCR workflow with triggers and conditions to your taste
2. Temporarily decrease the servers loglevel to 0
3. Try to trigger the workflow according to the conditions you've set (for example by uploading a new PDF file or setting a new tag)
4. Check your Database table oc_jobs. This should contain a new job for the OCR processing like this: | OCA\WorkflowOcr\BackgroundJobs\ProcessFileJob | {"filePath":"some.pdf","settings":"{\"languages\":[\"eng\"]}"}. If that's not the case, you can stop here. You're facing a condition issue. The nextcloud.log file content might help you to find out why your workflow was not added to the queue
5. If you can see a new job for the OCR process, run the cron.php once manually (for example by running sudo -u www-data php -f /var/www/nextcloud/cron.php)
6. Inspect your nextcloud.log file (e.g. by using the logreader). You should be able to see various outputs, pointing you to the right direction (for example you should be able to see the output of the ocrmypdf process)

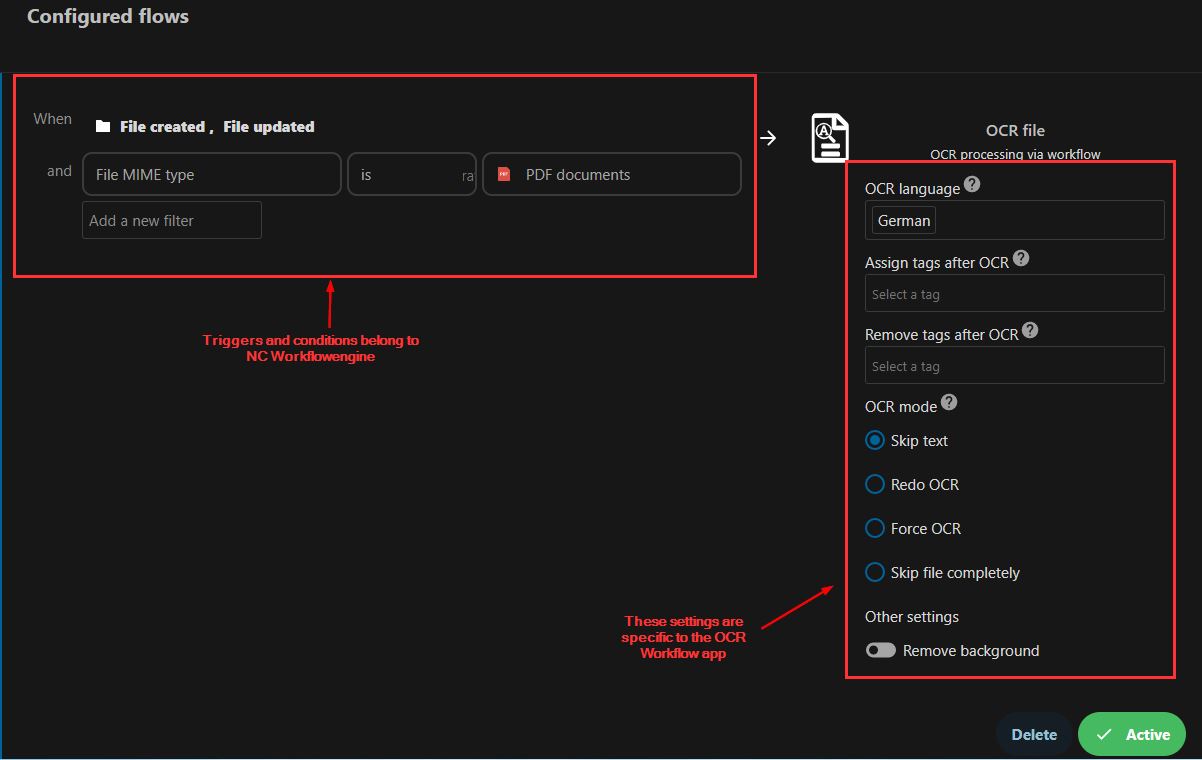

This app is build on top of the Hub Workflowengine which makes it quite flexible and customizable. But this comes with the tradeoff that some missbehaviours might be related to the app itself and some others have their origin in the Workflowengine. As a rule of thumb, everything related to the lefhandside triggers and conditions secions comes from the NC Workflowengine, while the settings on the righthandside are OCR app specific:

Please keep that in mind when troubleshooting issues. Of course, feel free to open new issues here, but we might need to redirect you to the official NC Server project.

You can check issues related to the Workflowengine by trying to reproduce the same behaviour with different workflow-based apps. If they behave in the same way in terms of triggers and conditions, the issue is most likely related to the NC Workflowengine itself and cannot be fixed here.

Tools and packages you need for development:

• make
• node and npm
• composer (Will be automatically installed when running make build)
• Properly setup php-environment
• Webserver (like Apache)
• XDebug and a XDebug-connector for your IDE (for example https://marketplace.visualstudio.com/items?itemName=felixfbecker.php-debug) if you want to debug PHP code
• PHP IDE (we recommend VSCode)

You can then build and install the app by cloning this repository into the Hub apps folder and running make build.

cd /var/www/<Hub_INSTALL>/apps
git clone https://github.com/R0Wi/workflow_ocr.git workflow_ocr
cd workflow_ocr
make build

• Currently only pdf documents (application/pdf) and single images (image/jpeg and image/png) can be used as input. Other mimetypes are currently ignored but might be added in the future.

• All input file types currently produce a single pdf output file. Currently there is no other output file format supported.

• Pdf metadata (like author, comments, ...) might not be available in the converted output pdf document. This is limited by the capabilities of ocrmypdf (see ocrmypdf/OCRmyPDF#327).

• Currently files are only processed based on workflow-events so there is no batch-mechanism for applying OCR to already existing files. This is a feature which might be added in the future. For applying OCR to a single file, which already exist, one could use the "tag assigned" workflow trigger.

• If you encounter any problems with the OCR processing, you can always restore the original file via Hub's version history.



  If you want to clean the files history for all files and only preserve the newest file version, you can use

  sudo -u www-data php occ versions:cleanup
